Integrated heterodyne laser Doppler vibrometer based on stress-optic frequency shift in silicon nitride

,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,

downloadPDF
文章导航 > PhotoniX  > 2023 > 优先出版
Integrated heterodyne laser Doppler vibrometer based on stress-optic frequency shift in silicon nitride[J]. PhotoniX. doi: 10.1186/s43074-023-00105-4
引用本文: Integrated heterodyne laser Doppler vibrometer based on stress-optic frequency shift in silicon nitride[J]. PhotoniX. doi: 10.1186/s43074-023-00105-4
shu
Adam Raptakis, Lefteris Gounaridis, Jörn P. Epping, Thi Lan Anh Tran, Thomas Aukes, Moritz Kleinert, Madeleine Weigel, Marco Wolfer, Alexander Draebenstedt, Christos Tsokos, Panos Groumas, Efstathios Andrianopoulos, Nikos Lyras, Dimitrios Nikolaidis, Elias Mylonas, Nikolaos Baxevanakis, Roberto Pessina, Erik Schreuder, Matthijn Dekkers, Volker Seyfried, Norbert Keil, René G. Heideman, Hercules Avramopoulos, Christos Kouloumentas. Integrated heterodyne laser Doppler vibrometer based on stress-optic frequency shift in silicon nitride[J]. PhotoniX. doi: 10.1186/s43074-023-00105-4
Citation: Adam Raptakis, Lefteris Gounaridis, Jörn P. Epping, Thi Lan Anh Tran, Thomas Aukes, Moritz Kleinert, Madeleine Weigel, Marco Wolfer, Alexander Draebenstedt, Christos Tsokos, Panos Groumas, Efstathios Andrianopoulos, Nikos Lyras, Dimitrios Nikolaidis, Elias Mylonas, Nikolaos Baxevanakis, Roberto Pessina, Erik Schreuder, Matthijn Dekkers, Volker Seyfried, Norbert Keil, René G. Heideman, Hercules Avramopoulos, Christos Kouloumentas. Integrated heterodyne laser Doppler vibrometer based on stress-optic frequency shift in silicon nitride[J]. PhotoniX. doi: 10.1186/s43074-023-00105-4
shu

Integrated heterodyne laser Doppler vibrometer based on stress-optic frequency shift in silicon nitride

doi: 10.1186/s43074-023-00105-4

Integrated heterodyne laser Doppler vibrometer based on stress-optic frequency shift in silicon nitride

  • 1.

    Photonic Communications Research Laboratory, Institute of Communication and Computer Systems, National Technical University of Athens, 15573, Zografou, Greece

  • 2.

    LioniX International BV, P

  • 3.

    SolMateS BV, Auke Vleerstraat 3, 7521 PE, Enschede, The Netherlands

  • 4.

    Fraunhofer Institute for Telecommunications, HHI, 1058, Berlin, Germany

  • 5.

    Polytec GmbH, 76337, Waldbronn, Germany

  • 6.

    Optagon Photonics, Agia Paraskevi 15341, Athens, Greece

  • 7.

    Cordon Electronics Italia S

Funds: The work was supported by the EU Horizon 2020 research and innovation program under grant agreement 3PEAT (Contract No. 780502).

    摘要
    • 关键词:
    •  /
    •  /
    •  /
    •  /
    •  /
    •  /
    •
    Abstract:

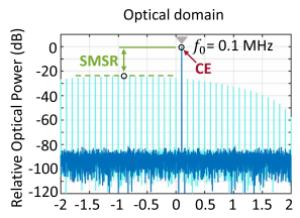

    We demonstrate a compact heterodyne Laser Doppler Vibrometer (LDV) based on the realization of optical frequency shift in the silicon nitride photonic integration platform (TriPleX). We theoretically study, and experimentally evaluate two different photonic integrated optical frequency shifters (OFSs), utilizing serrodyne and single-sideband (SSB) modulation. Both OFSs employ stress-optic modulators (SOMs) based on the non-resonant piezoelectrical actuation of lead zirconate titanate (PZT) thin-films, deposited on top of the silicon nitride waveguides with a wafer-scale process. To improve the modulation bandwidth of the SOMs we investigate a novel configuration of the electrodes used for the actuation, where both electrodes are placed on top of the PZT layer. Using this top-top electrode configuration we report frequency shift of 100 kHz and 2.5 MHz, and suppression ratio of the unwanted sidebands of 22.1 dB and 39 dB, using the serrodyne and the SSB OFS, respectively. The best performing SOM structure induces 0.25π peak-to-peak sinusoidal phase-shift with 156 mW power dissipation at 2.5 MHz. We use the SSB-OFS in our compact LDV system to demonstrate vibration measurements in the kHz regime. The system comprises a dual-polarization coherent detector built in the PolyBoard platform, utilizing hybrid integration of InP photodiodes (PDs). High quality LDV performance with measurement of vibration frequencies up to several hundreds of kHz and displacement resolution of 10 pm are supported with our system.
